Plastimo

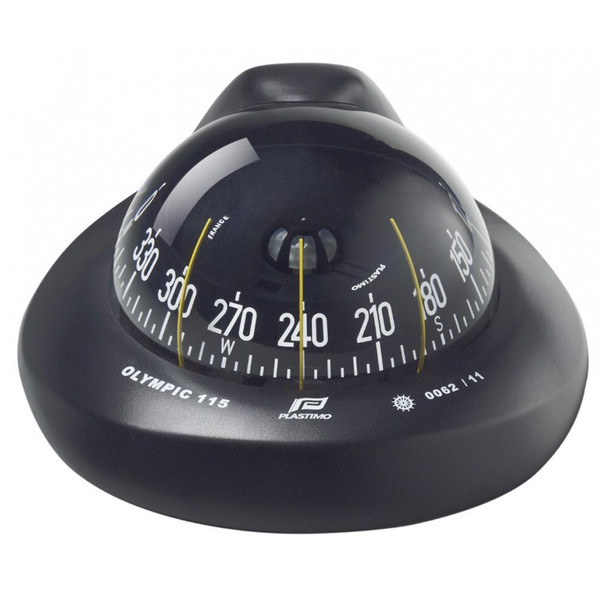

Plastimo Olympic 115 Compass - Black - Flushmount Tilted - Conical Card Black

SKU:
P60999
UPC:
3162420609991
Sailboats 6-12m
SOLAS-MED approved
Universal
€170.95

Awaiting stock!

Frequently bought together:

Description

The Olympic 115 Compass features an exceptionally steady card and remain absolutely accurate whatever the heeling angle and the weather conditions. This compass is part of the Plastimo Olympic range  specifically designed for sailing boats.

SOLAS-MED approved.

Features

  • Sailboats 6 to 12 m (19 to 40 ft)
  • Highly stable and reliable reading, whatever the heeling angle and weather conditions
  • Flushmount on horizontal surface or tilted up to 45°
  • Compact design and deck-hugging profile
  • Binnacle mount optional
  • All parts fully UV-treated and scratch resistant dome
  • SOLAS-MED Approved: equally suitable for professional fishing boats and commercial vessels

Viton diaphragm with extreme expansion and retraction capacity

Viton diaphragm with extreme expansion and retraction capacity

Compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.

Watertight construction

Watertight construction

One-piece moulded flange and bowl.

Tunnel rods provide easy access to compensators through the binnacle.

1 LED bulb.

Specifications

  • Card colour: black
  • Card type: conical
  • Mounting type: flushmount, tilted 45° maximum
  • Panel hole: 104 mm
  • Depth below Panel: 68 mm
  • Boat size: sailboat 6 to 12 m (19 to 40 ft)
  • Lubber Line: 3 lubber lines at 45°
  • Compensation: included as standard feature, except on inclined model (45°max)
  • Lighting: 1 LED bulb 12/24V, supplied as standard
  • Supplied with: protective cover, screws, drilling template
  • Homologation: SOLAS-MED 96/98

Compass Card

  • Conical card graduated every 5°, apparent Diameter 101 mm
  • Heading numerals every 30°

Mounting

  • Flushmount: on a horizontal or inclined surface, 45° maximum
  • Binnacle available as option

Dimensions
