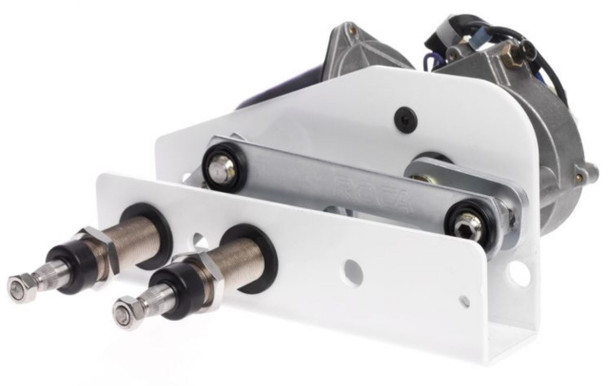

Roca W38 Dual Drive Wiper Motor - 103mm Shaft 24 Volts - 531022

Roca W38 Dual Drive Wiper Motors are robust and powerful and ideal for the front windows of larger power craft. The W38 wiper motor powers up to a 900 mm / 35″  W38 pantograph arm/blade combinations with an adjustable sweep angle of 45-110°.

Features

• 38 Nm torque
• Dual Drive Performance
• Powers up to 900 mm / 35” arms and blades
• Two speeds: 35 sweeps/min and 55 sweeps/min
• Easily adjustable sweep angle 45-110°
• Voltage Input:24 VDC
• CE approved; EMC protected
• Insulated ground for metal, GRP, and wooden boats
• Dynamic parking, can easily be changed from Left to Right

Dimension: L1 = 53mm L2 = 103mm

Acceptable Arms

Roca W38 Dual Drive Pantograph Arm 470mm - 700mm Model 538430 - See more here

Roca W38 Dual Drive Pantograph Arm 620mm - 900mm Model 538335 - See more here

Switching Options

 see
