Description

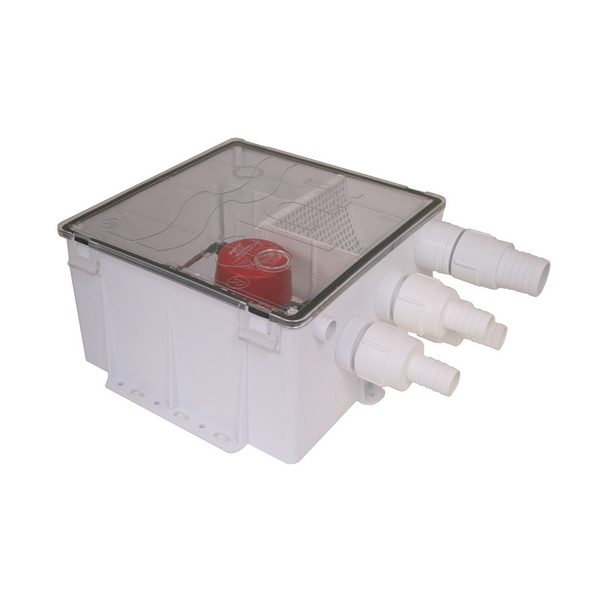

The Rule 99B-24 shower drain assembly is a self contained unit with sump & secured lid, rule submersible 1100 and float switch
Features
- Operating voltage 24v
- Powerful pump accommodates flows up to 1100 GPH (3028 LPH)
- Sealed, impact-resistant polycarbonate lid with gasket to prevent water splash
- Lid, pump, filter and float switch can be removed and serviced without tools
- Combination of port fittings, easy access side rails, and rear bracket option to ease installation
- Back flow prevention reduces the amount of water that can siphon back to shower box
Dimensions

Specifications
- Voltage 24v
- Amps (V) 1.8 (24V) 2.2 (27.2V)
- Discharge Port 29mm
- Max Head 3m
- Check Valve Yes
