Description

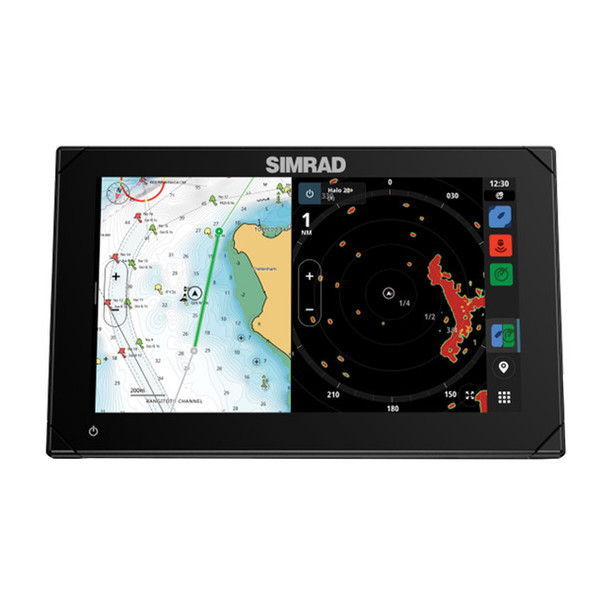

The new Simrad NSX™ 3009 Chartplotter features an innovative, modern interface with powerful navigation capability delivering an experience like never before. The impressive 9" SolarMax IPS Touchscreen display offers wide viewing angles, extreme clarity and sunlight viewability even with polarized sunglasses.
Features
- Sonar sharing
- Full Mercury Integration, inc. SmartCraft® Connect and VesselView®
- SolarMAX™ IPS HD touchscreen with extreme viewing angles
- Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules
- Compatible with C-MAP® DISCOVER™ X AND REVEAL™ X charts
- Support for additional charting, such as CMOR, Florida Marine Tracks, Strike Lines and Standard Mapping *US Only – to come in 2023*
- See near and far with full HALO® radar support
- Easy autopilot integration
- Excellent third-party integration, inc. CZone®, OmniSense, Dometic, Lumishore and more...
- Simrad® App integration
- Wireless connectivity, plus full Ethernet, USB, and NMEA 2000® networking capability
- IP Camera video support
- New Setup Wizard to get you up and running quickly
Unlock the full Simrad suite
NSX integrates seamlessly with the full suite of Simrad electronics, giving you full visibility and control across your entire boat. Get enhanced safety with our latest HALO® radars, up your fishing game with our new S3100 sonar module, or take a break from the helm with Simrad Autopilot.
Embrace sonar sharing*
Take your fishing game to the next level with sonar sharing. Add another NSX display to your angling arsenal to double-up and monitor your sonar feeds from anywhere on-board.
Enhanced third-party integration
Enhanced third-party integration means the fluid experience extends beyond the world of Simrad. Feel more in control with full support for Mercury® engines, including cruise control, active trim, and VesselView®, with Mercury SmartCraft® Connect, unlocking autopilot features and a split screen interface.
Choose your own charts (US Only)
For total flexibility, NSX is now compatible with a range of third-party chart providers, including CMOR Mapping, and plenty more to come...*
*Florida Marine Tracks, Standard Mapping, StrikeLines, and others in development for 2023
Big screen, small footprint
NSX delivers more screen size for the overall footprint of your product, so you can see more and take up less space in your cockpit.
That’s why NSX is the perfect choice for any mid-sized center console, dayboat, or other leisure-activity powerboat.
Functionality in all conditions
Even the touchscreen on NSX is built for adventure. With SolarMAX IPS technology, you can view the display at any angle, in direct sunlight, and with polarized sunglasses.
Connect the Simrad® App
Take your boating adventures home with you, using the Simrad Companion App. By pairing your smartphone with your NSX, you can pre-plan trips, review tracks, plot Waypoints, and sync directly to your device.
In the Box
- Simrad NSX 3009 Chartplotter
- Display sun-cover protector
- Bracket mount and knobs
- Dash flush-mounting kit
- Mounting screws
- 4-pin power cable
- Fuse block
- Removable port covers
- Documentation
Specifications
Display
| Backlight Color | White |
|---|---|
| Resolution | 1280 x 720 px |
| Screen Brightness | >1200 nits |
| Size and Type | 9" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses |
| Viewing Angles | 85° (top, bottom, left, and right) |
Electrical
| Power Consumption, max. | 18.8 W (1360 mA at 13.8 V) |
|---|---|
| Recommended Fuse Rating | 3A |
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
Environment
| Shock and Vibration | 100,000 cycles of 20 G |
|---|---|
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
GPS
| Correction | 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
|---|---|
| GPS Receiver Channels | 32 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Update rate | 10Hz |
MFD
| AIS | Receive AIS data over NMEA 2000 |
|---|---|
| Cartography included | World wide basemap (not for navigation) |
| Cartography supported | C-MAP Discover™ X, C-MAP Reveal™ X |
| Digital Switching | Czone / Simrad DDS |
| External Storage | 1 MicroSD slot, USB port for external drive |
| GPS | Internal, 10Hz |
| Radar (inc. compatibility) | Halo Dome radars, Halo open array radars, 3G/4G, HD Radars |
| Sonar (inc. compatibility) | One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging |
| Weather | No |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points. |
| Compass Safe Distance - Metric, imperial | 50 cm (1.7 ft) |
Physical
| Dimensions (W x H x D) | With bracket: W: 263.0 mm (10.35") x H: 172.6 mm (6.80") x D: 80.6 mm (3.17") No bracket, no suncover: W: 239.0 mm (9.40") x H: 148.5 mm (5.85") x D: 80.6 mm (3.17") No bracket, with suncover: W: 243.7 mm (9.59") x H: 153.4 mm (6.03") x D: 85.6 mm (3.37") |
|---|---|
| Mounting Type | Bracket (supplied), panel mount or flush mount |
| Weight | 1.2 kg (2.6 lbs) |
Connectivity
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
|---|---|
| Ethernet | 1 port (5-pin connector) |
| NMEA 0183 | No |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | No |
| Video | Ip Camera support |
| WiFi | IEEE 802.11b/g/n |
Other
| Warranty Period | 2 Years |
|---|---|
| Interface | Multi-touch screen |
| Languages | -German (Deutsch) -English (English) -Dutch (Nederlands) -Danish (Dansk) -Spanish (Español) -French (Français) -Italian (Italiano) -Norwegian (Norsk) -Portuguese (Português) -Finnish (Suomi ) -Swedish (Svenska) -Icelandic (Islenska) -Greek (ελληνικά) -Chinese (中文) -Turkish (Türkçe) -Estonian (Eesti) -Croatian (Hrvatski) -Lithuanian (Lietuvių) -Latvian (Latviešu ) -Polish (Polski) -Chinese Simplified (中文) -Japanese (日本語) -Korean (한국어) -Ukrainian |
Downloads
FAQs
1. Is the Simrad NSX 3009 compatible with the sunlight and rough conditions?
Yes. The SolarMAX IPS 9-inch touchscreen display is built to provide great visibility in wide angles, even in direct sunlight and when wearing polarized glasses.
2. Does the NSX 3009 provide sonar and fishfinding options?
Yes. This unit is equipped with Active Imaging with CHIRP, SideScan and DownScan Imaging technologies, as well as S3100 and S5100 sonar modules. Also, the sonar sharing enables you to exchange sonar data between compatible NSX display units.
3. Is it possible to connect Mercury engine to NSX 3009?
Yes. The NSX 3009 model supports integration with Mercury engines with the help of SmartCraft Connect package that provides features such as VesselView, cruise control and active trim.
4. Is it possible to connect radar and autopilot with the NSX 3009?
Yes. The NSX 3009 fully supports HALO radar and can be connected to compatible Simrad autopilots for integrated boat controls.
5. Is it possible to connect smartphone with the NSX 3009?
Yes. The wireless connectivity along with Simrad App integration helps you to connect smartphone, pre-plan trips, view tracks, create waypoints and synchronize information with the chartplotter.
