Victron Energy BlueSolar MPPT Charge Controller - 150V (35A)

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40 degree C (104 degree F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Real-time data display options

Color Control GX or other GX devices: see the Venus documents on our website. A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

Solar charge controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Load output

The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which BlueSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: BlueSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

Specifications

• Colour: Blue
• Battery voltage: 12 V/24 V/48 V Auto Select (software tool needed to select 36 V)
• Rated charge current: 35 A
• Nominal PV power (12 V 1a,b): 500 W
• Nominal PV power (24 V 1a,b): 1000 W
• Nominal PV power (36 V 1a,b): 1500 W
• Nominal PV power (48 V 1a,b): 2000 W
• Maximum PV short circuit current (2): 40 A
• Maximum PV open circuit voltage: 150 V absolute maximum coldest conditions
• Peak efficiency: 98%
• Self-consumption (12 V/24 V/48 V): 20 mA/15 mA/10 mA
• Charge voltage 'absorption': 14.4 V/28.8 V/43.2 V/57.6 V (adjustable)
• Charge voltage 'float' : 13.8 V/27.6 V/41.4 V/55.2 V (adjustable)
• Charge algorithm: Multi-stage adaptive (eight pre-programmed algorithms)
• Temperature compensation: -16 mV per degree C, -32 mV per degree C, -64 mV per degree C
• Operating temperature: -30 degree C to +60 degree C (full rated output up to 40 degree C)
• Protection: Battery reverse polarity (fuse, not user accessible),PV reverse polarity, Output short circuit, Over-temperature
• Humidity: 95%, non-condensing
• Data communication port: VE.Direct See the data communication white paper on our website
• Power terminals: 13 mm²/AWG6
• Protection category: IP43 (electronic components), IP22 (connection area)
• Height: 130 mm
• Width: 186 mm
• Depth: 70 mm
• Weight: 1.25 kg

Optional Extra

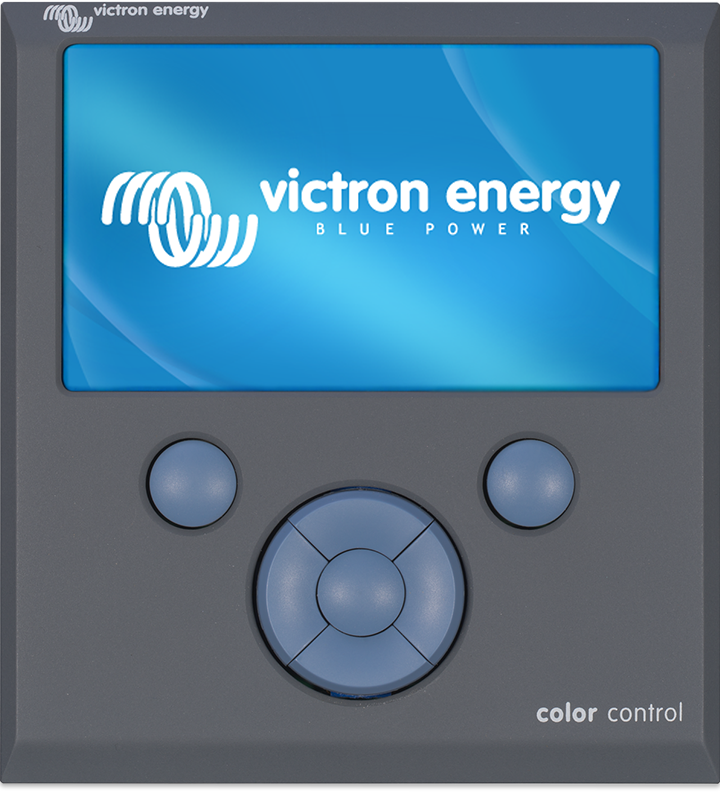

Color Control GX

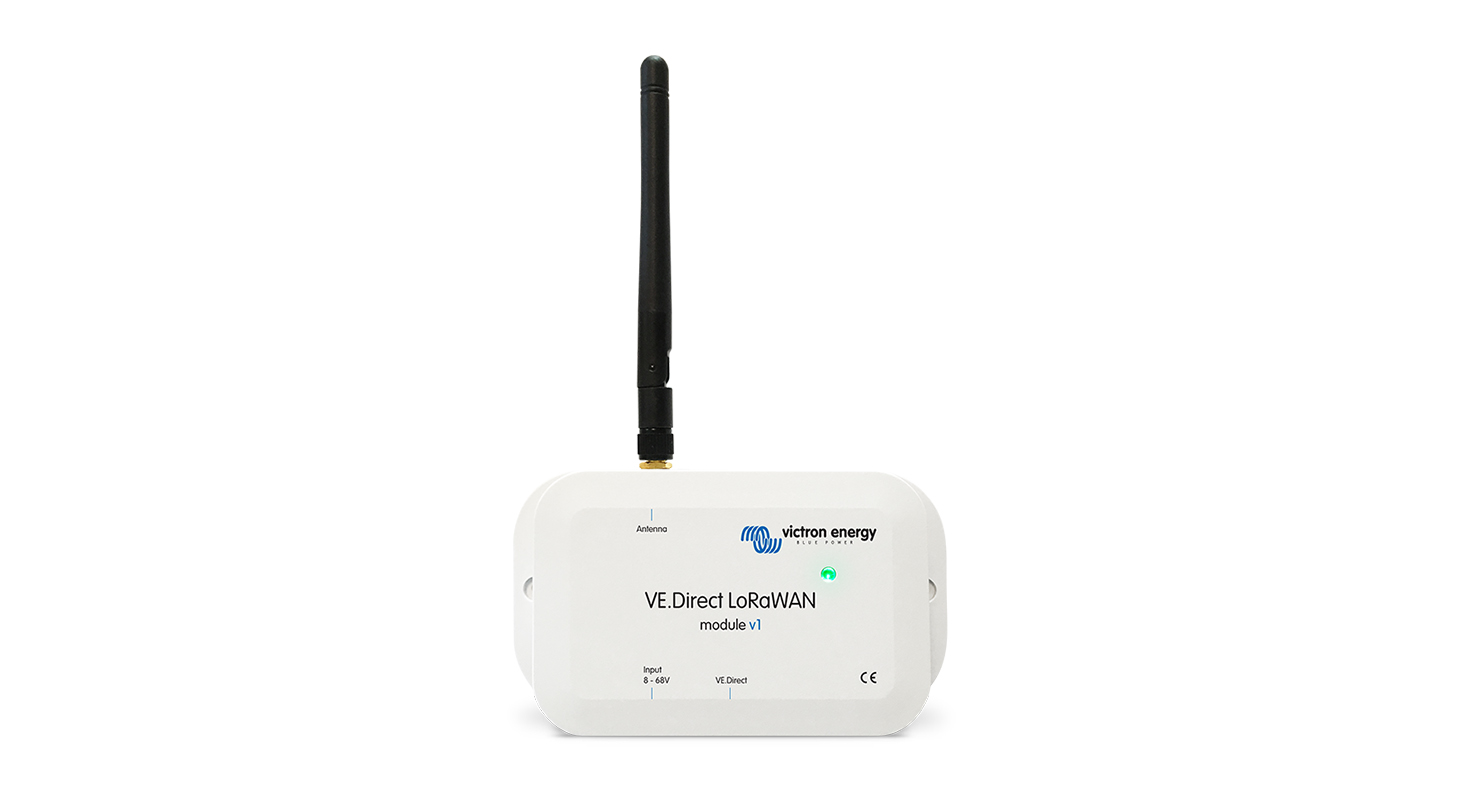

VE.Direct LoRaWAN - module

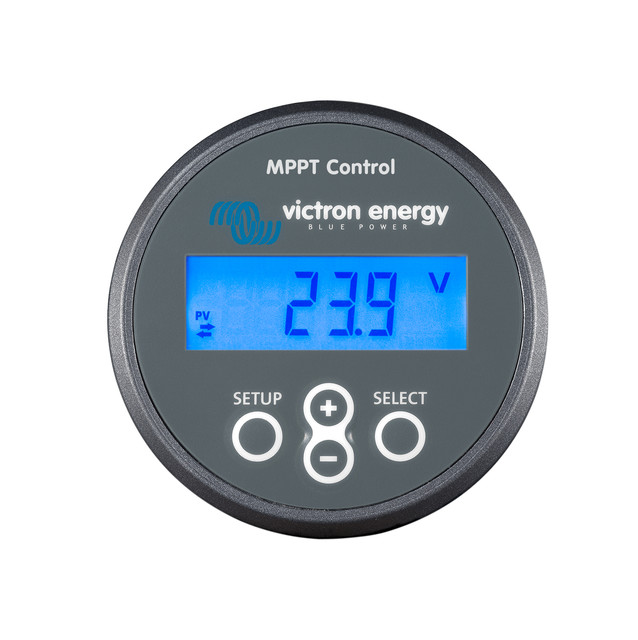

MPPT Control

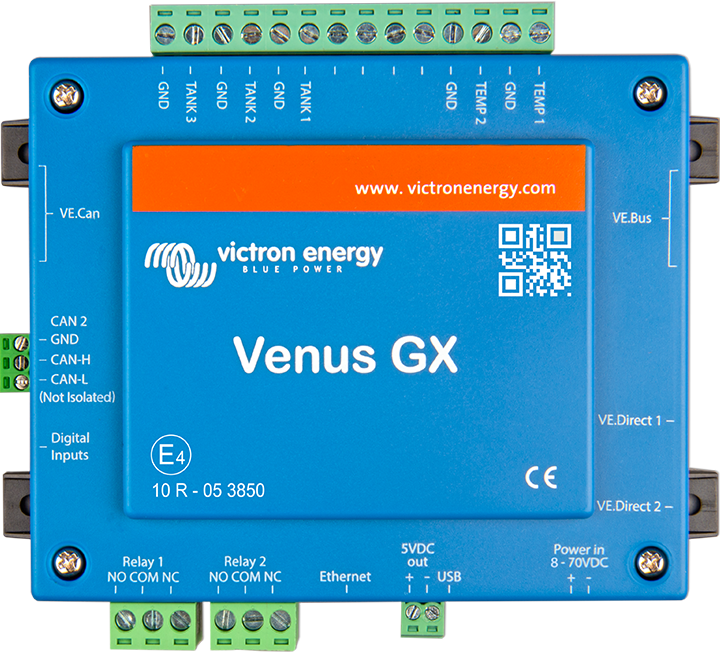

Venus GX

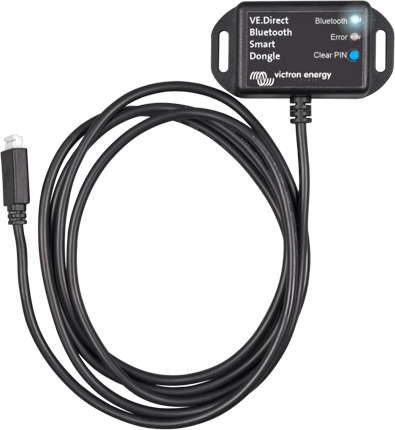

VE.Direct Bluetooth Smart dongle

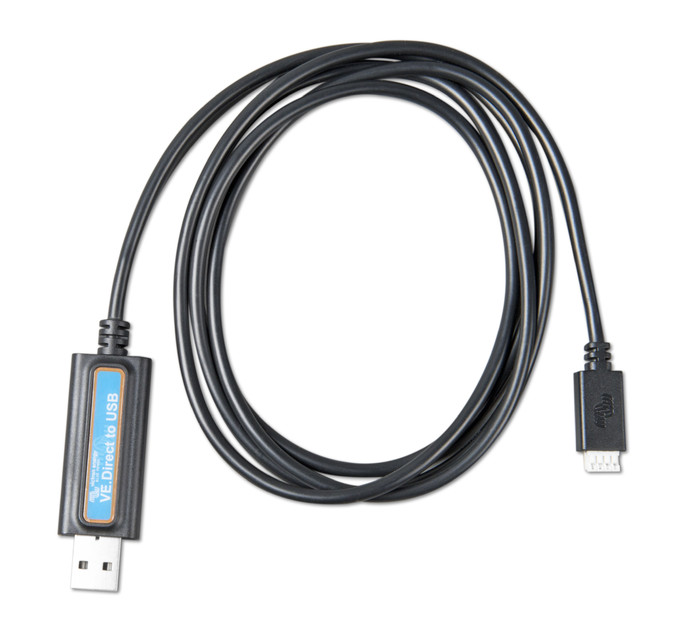

VE.Direct to USB interface

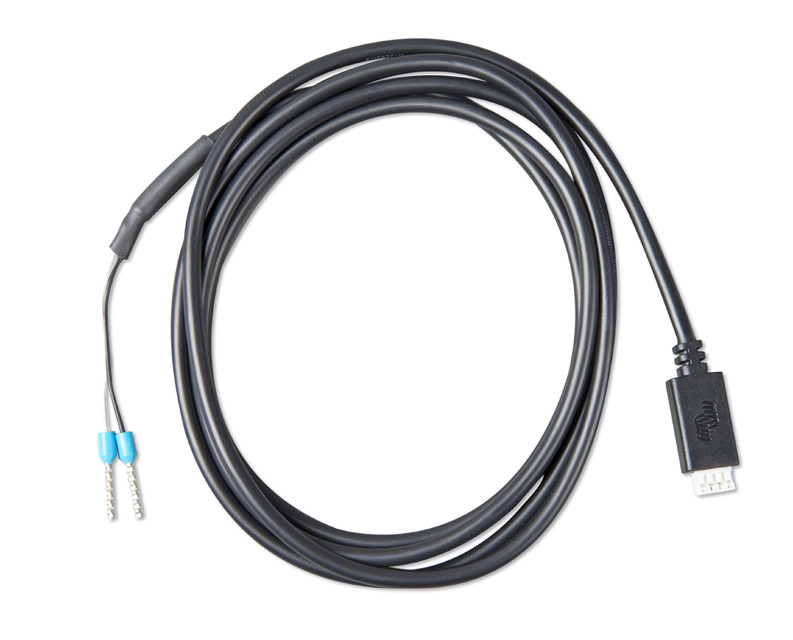

VE.Direct TX digital output cable

VE.Direct non inverting remote on/off cable

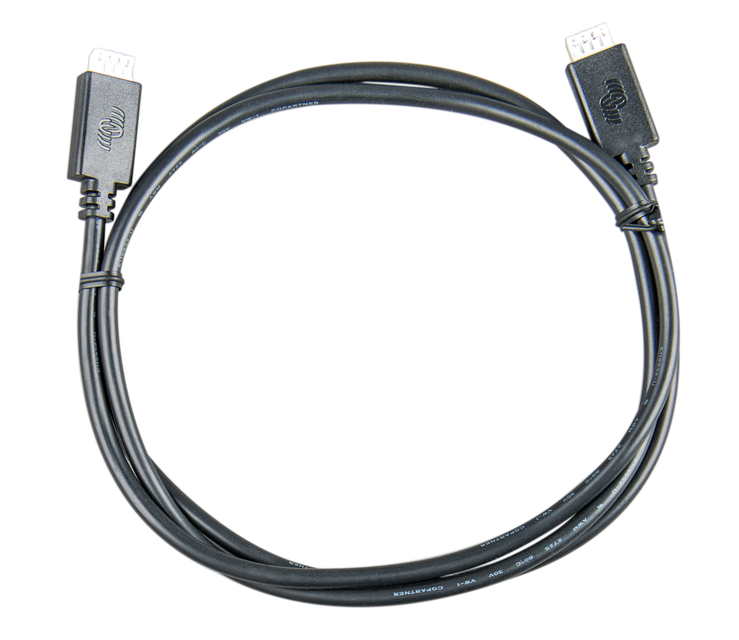

VE.Direct cable

Smart Battery Sense

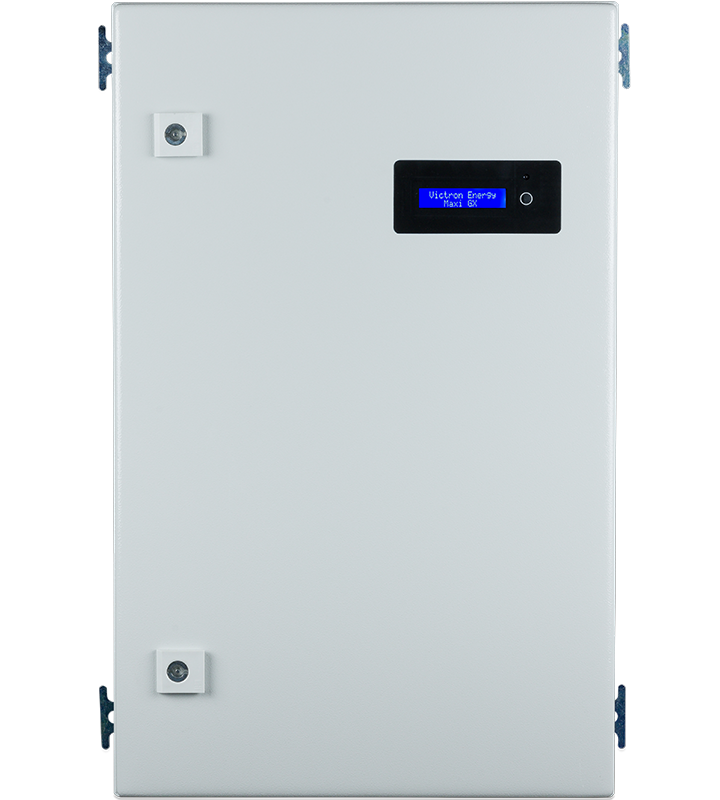

Maxi GX

Technical Files

Datasheet
Declaration of Conformity
