Victron Energy Phoenix Inverter - 12V (3000A) 120V

SinusMax - Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra start-up power

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Virtually unlimited power thanks to parallel and 3-phase operation capability

Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24 kW/30 kVA output power. Operation in 3-phase configuration is also possible.

To transfer the load to another AC source: the automatic transfer switch

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Computer interface

All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.

New applications of high power inverters

The possibilities of paralleled high power inverters are truly amazing. For ideas, examples and battery capacity calculations.

BMV-700 Battery Monitor

The BMV-700 Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms, like Peukert’s formula, to exactly determine the state of charge of the battery. The BMV-700 selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery.

Phoenix Inverter Control

This panel can also be used on a MultiPlus Inverter/Charger when an automatic transfer switch but no charger function is desired. The brightness of the LEDs is automatically reduced during night time.

Color Control GX

Provides monitor and control. Locally, and also remotely on the VRM Portal.

MK3-USB VE.Bus to USB interface

Connects to a USB port (see ‘A guide to VEConfigure’)

VE.Bus to NMEA 2000 interface

Connects the device to a NMEA 2000 marine electronics network. See the NMEA 2000 & MFD integration guide.

Specifications

• Colour: Blue
• Material: Aluminium
• Parallel and 3-phase operation: Yes
• Input DC voltage range: 9.5 V - 17 V/19 V - 33 V/38 V - 66 V
• Output voltage: 230 VAC ± 2%
• Frequency: 50 Hz ± 0.1%
• Voltage: 12 V
• Fuse size: 3000 A
• Continuous power at 25 degree C/40 degree C/60 degree C: 2400 W/2200 W/1700 W
• Peak power: 6000 W
• Maximum efficiency (12 V): 93%
• Zero load power (12 V): 20 W
• Zero load power in AES mode: 15 W
• Zero load power in search mode: 8 W
• Programmable relay: Yes
• Protection: a - g
• Remote on-off: Yes
• Operating temperature range: 40 degree C to + 65 degree C
• Humidity (non-condensing): Maximum 95%
• Protection category: IP21
• Battery-connection type: 2+2 M8 bolts
• Cable length: 1.5 m
• Cable included: Yes
• 230 V AC-connection: Screw terminals
• Height: 362 mm
• Width: 258 mm
• Depth: 218 mm
• Weight: 18 kg

Optional Extra

VE.Bus Smart dongle

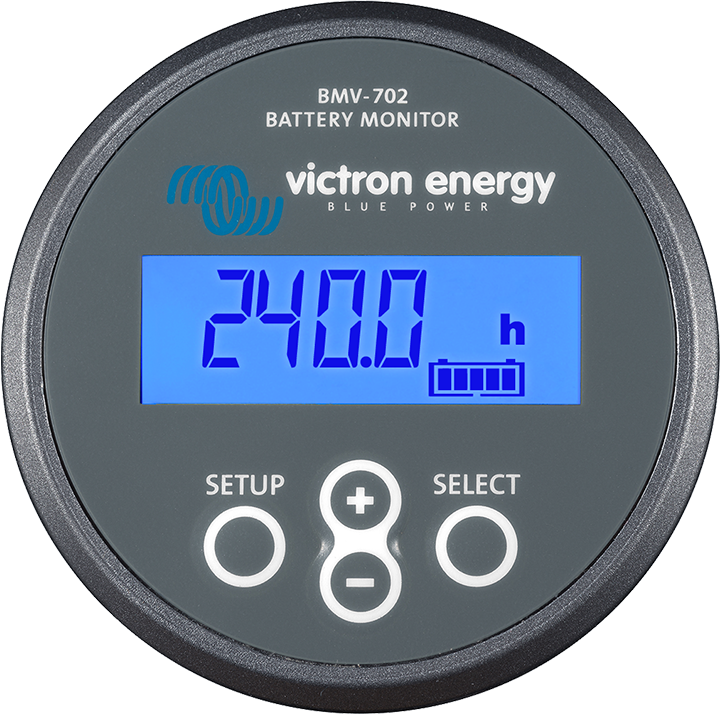

BMV-702

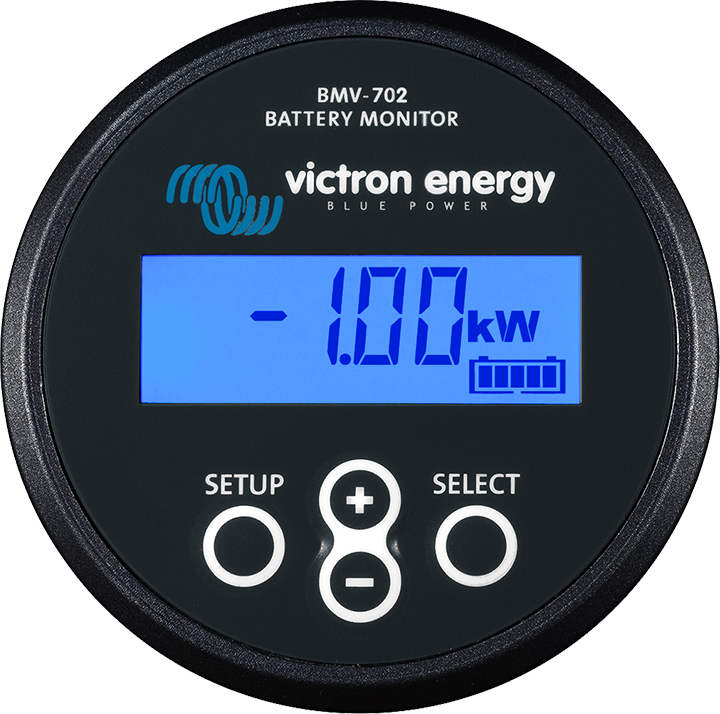

BMV-702 (Black)

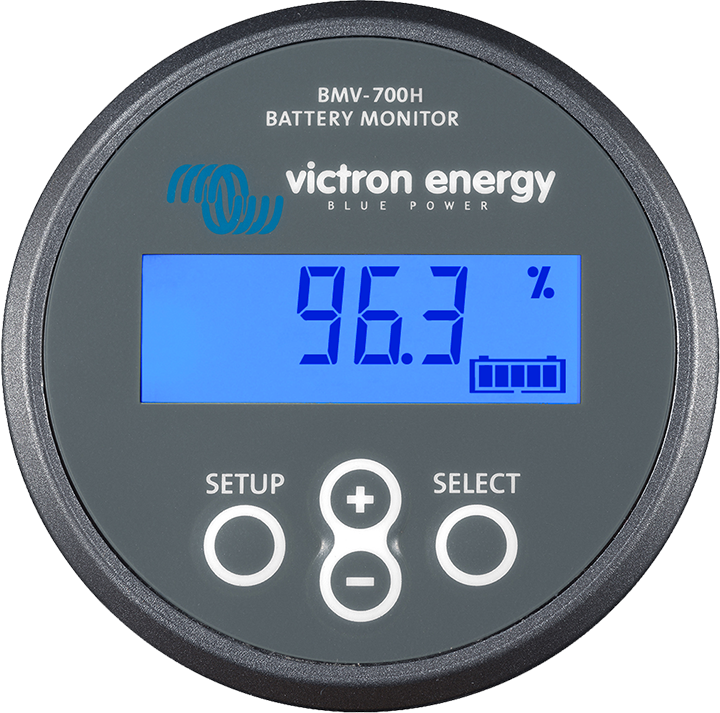

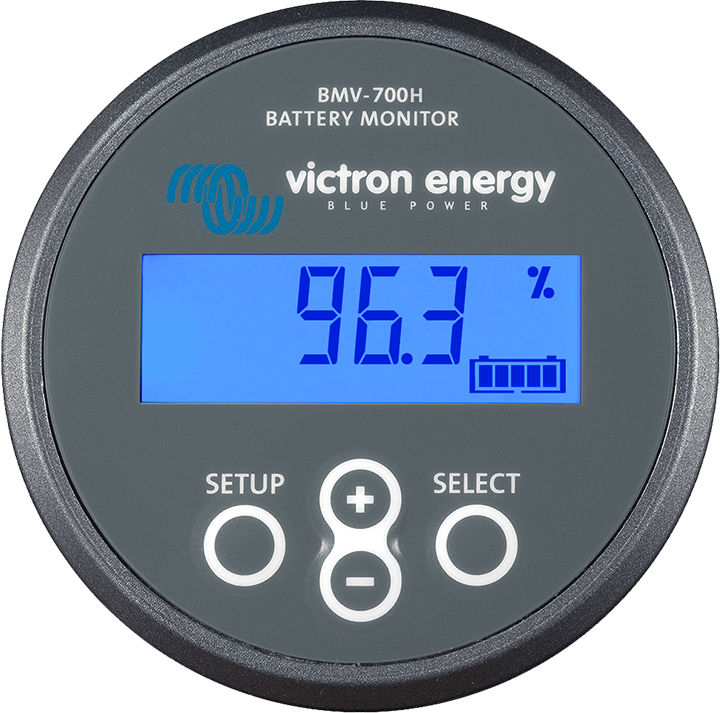

BMV-700H

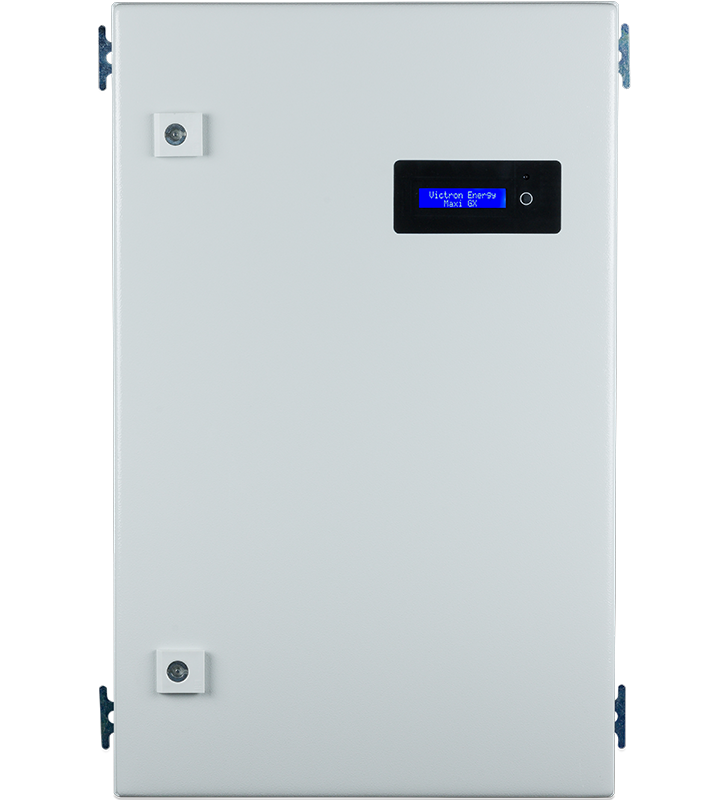

Maxi GX
