Description
Features

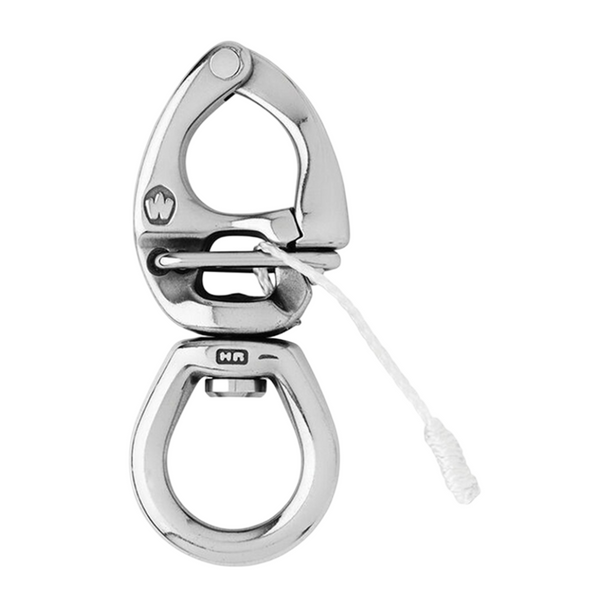

- HR forged (17.4 PH) quick-release snap shackle with swivel eye
- The opening is made by pulling the lanyard
- Perfect to attach one sheet or a halyard
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Specifications
| Size | Weight | Working load | Breaking load | Length | Materials |
| 80mm | 54g | 880kg | 1300kg | 80mm | HR 17.4 PH stainless steel grade |
| 90mm | 90g | 1280kg | 2000kg | 90mm | HR 17.4 PH stainless steel grade |
| 110mm | 160g | 1600kg | 3000kg | 110mm | HR 17.4 PH stainless steel grade |
Dimensions
| Size | 80mm | 90mm | 110mm |
| A | 14 | 16 | 20 |
| B | 19 | 23 | 26.5 |
| L | 80 | 90 | 110 |
Applications
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets
