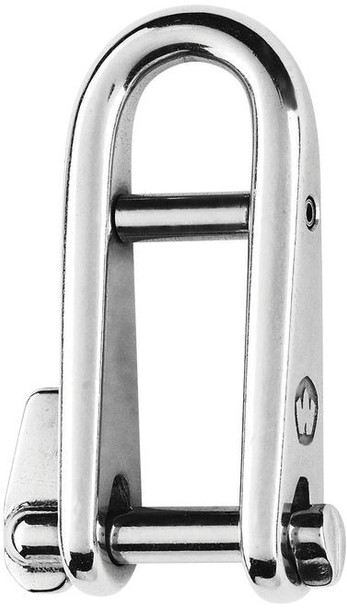

Wichard HR Stainless Captive Pin Halyard Shackle 8mm - 91434

High-quality Wichard key pin halyard shackle, forged in D shackle in HR stainless steel grade (17,4 PH). The shackle has the captive pin and opening and closing is completed simply by rotating the pin half a turn. A firm indent holds the pin in the closed position.

Features

• Forged D shackle in HR stainless steel grade (17,4 PH)

• Outstanding working and breaking load

• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel

• WLL: only for industrial applications (lifting, i.e,…)

• CE marking

Specifications

• Working load: (kg)960
• Breaking load: (kg)3500
• Weight: (g)123

Dimensions

• A: (mm)59
• B: (mm)21
• C: (mm)8
• D: (mm)17
• D: diameter (mm)8
• E: (mm)6
• F: (mm)79
• G: (mm)48
• L: (mm)20
