Wichard

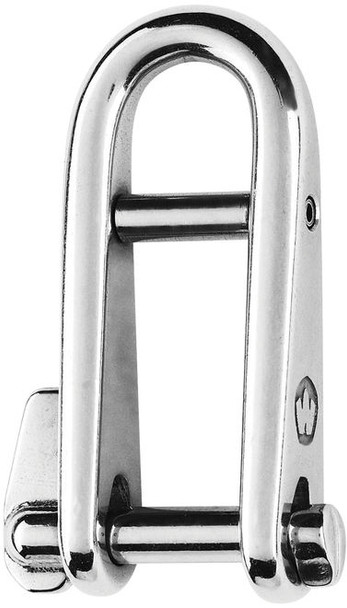

Wichard Stainless Captive Pin Halyard Shackle- 8 mm - 81434
- SKU:
- WICHARD81434
- UPC:
- 3587790814347
- MPN:
- 81434
Frequently bought together:
Description
High quality Wichard key pin halyard shackle, forged in grade 316L stainless steel. The shackle has the captive pin and opening and closing is completed simply by rotating the pin half a turn. A firm indent hold the pin in the closed position.
specifications
- Working load (kg)800
- Breaking load (kg)2500
- Weight (g)123

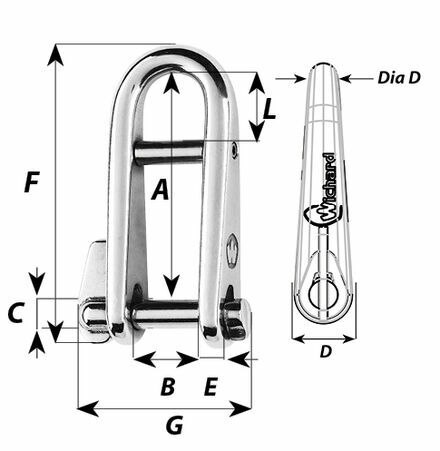

Dimensions
- A (mm)59
- B (mm)21
- C (mm)8
- D (mm)17
- D diameter (mm)8
- E (mm)6
- F (mm)79
- G (mm)49
- L (mm)20
