Wichard
Wichard Stainless Captive Pin Halyard Shackle 5mm - 81432
- SKU:
- WICHARD81432
- UPC:
- 3587790814323
Description
High-quality Wichard key pin halyard shackle, forged in grade 316L stainless steel. The shackle has the captive pin and opening and closing is completed simply by rotating the pin half a turn. A firm indent holds the pin in the closed position.
Features
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing are done simply by rotating the pin half a turn
- No risk of losing the pin as it remains attached
- Outstanding working and breaking loads
Applications
Perfect product for halyards or applications requiring to opening/close the shackle often
Specifications
- Working load: (kg)400
- Material: 316 stainless steel grade
- Breaking load: (kg)1200
- Weight: (g)31

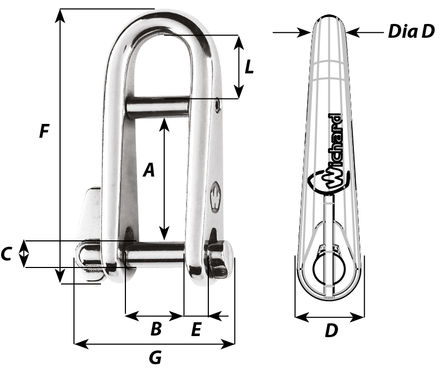

Dimensions
- A: (mm)37
- B: (mm)13
- C: (mm)5
- D: (mm)11
- D: diameter (mm)5
- E: (mm)4
- F: (mm)49
- G: (mm)31
- L: (mm)12
Download
