Seastar Capilano Steering Cylinder BA200-11TMC - 11 " Stroke 26 cu.in.Clevis End

SKU:
TXHC5379
UPC:
731957802170
€1,492.95
Frequently bought together:

Description

The Seastar Capilano A200-11TMC is a heavy duty, bronze and stainless steel hydraulic steering cylinder with 11" stroke, 26 cu inch capacity and with clevis end.

Features

  • Heavy duty brass cylinder
  • Suitable for single or dual rudder vessels
  • Suitable for twin helm positions
  • In/Out Bleeder fittings installed on cylinder
  • Two axis articulation
  • Connects to 9" (228mm) Rudder Arm

Specification

  • Model No. :BA200-11TMC
  • Bore Diameter : 2" (50.8mm)
  • Shaft Diameter :1" (25.4mm)
  • Travel : 11"  (279.4mm)
  • Capacity : 26.0 CU IN
  • Torque 23140 IN-LB (267.2 Kg-m)
  • Connection: Clevis

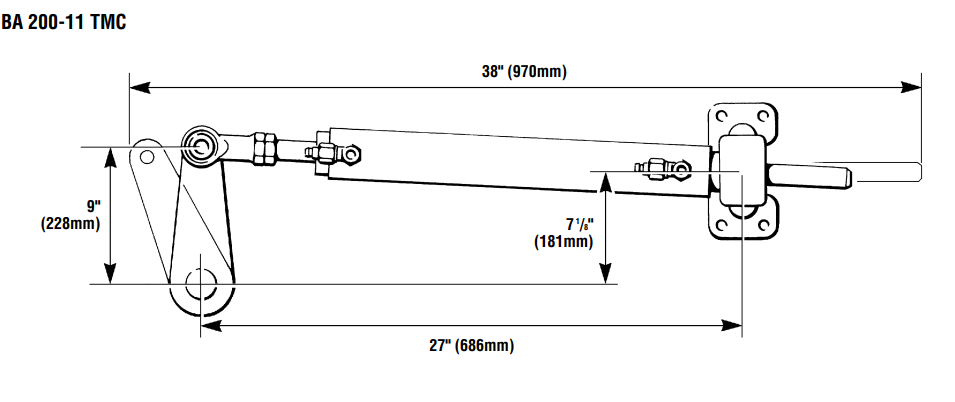

Dimensions

Download the installation and technical manual
