Description

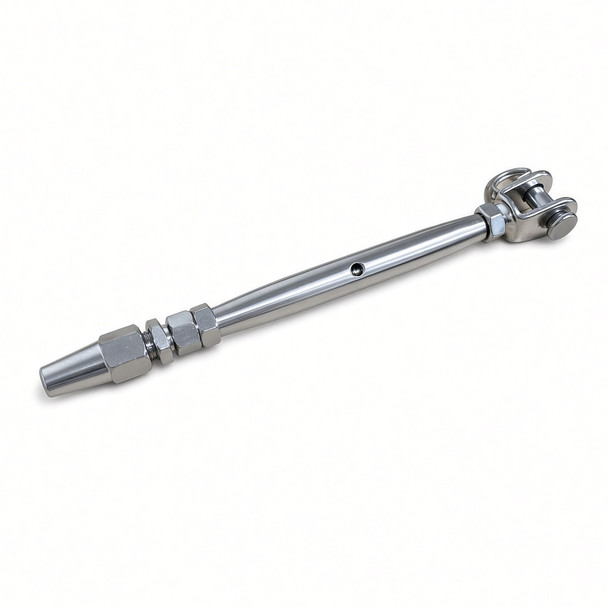

Sowester Stainless Rigging Screw with Fork / Swageless Terminals.
AISI 316 stainless steel closed-body rigging screw with a fork (jaw) end on one side and a swageless terminal on the other for wire. Used to tension standing rigging, stays, guardwires and wire runs without a swaging machine. The fork end has a removable clevis pin and split ring for a pinned connection.
The swageless cone terminal grips the wire on site with hand tools. The closed barrel has an inspection hole and lock nuts to hold the setting.
Features
- AISI 316 marine-grade stainless steel
- Fork / jaw end with clevis pin and split ring
- Swageless terminal for 4mm wire
- Closed body with inspection hole and lock nuts
- Fits on site – no swaging press required
- Typical uses: Standing rigging, stays, guardwires, wire balustrades and general marine tensioning with 4mm stainless wire.
Specifications
| Size | Extended Length | Contracted Length | Width | Thread Dia | Pin Dia | Wire |
| 6mm Thread - 3mm Wire | 237mm | 170mm | 20mm | 6mm | 7mm | 3mm |
| 8mm Threat- 4mm Wire | 278mm | 197mm | 25mm | 8mm | 8mm | 4mm |
