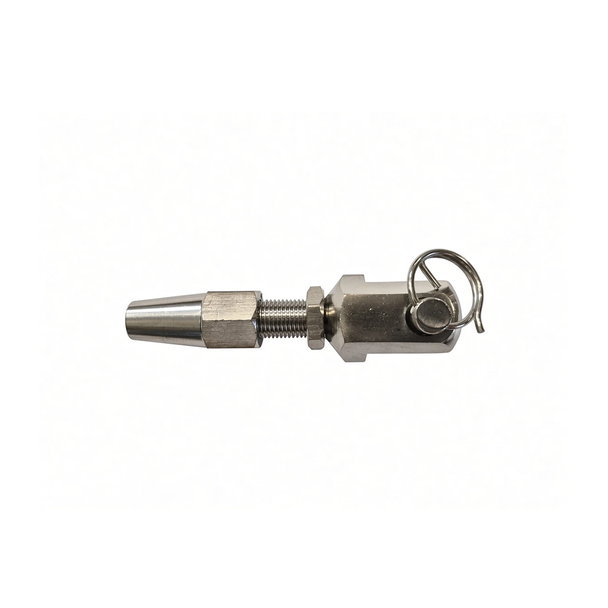

Description
Marine-grade AISI 316 stainless steel swage less (mechanical) terminal designed to terminate 4mm stainless steel wire rope without a hydraulic swager or specialist press.Ideal for standing rigging, stays, guard wires, lifelines, architectural cable, and on-site or onboard repairs. The fitting uses a cone/wedge assembly inside a tapered body.Under load the wire is gripped securely, typically matching or exceeding the breaking strength of correctly specified 1x19 wire when installed properly. Assembly uses only basic hand tools (spanners); no machine swaging is required. Length can be set on site.
Features
- AISI 316 / A4 marine-grade stainless steel for high corrosion resistance in saltwater
- Suits 4mm diameter wire (commonly 1x19; confirm wedge type for 7x7 / 7x19 if needed)
- Field-installable and inspectable
- Polished finish
- Suitable for marine, architectural, and general rigging use
