Sowester AIS 316 Stainlesss Toggle Rigging Screws - Swageless Terminal

€34.95 - €105.03
Frequently bought together:

Description

Sowester 316 Stainless Rigging Screws with toggle clevis and swageless terminal ends. Available in sizes from 6mm - 16mm - These are general purpose rigging screws with many applications from boats rigging to decks and balcony rails. The rigging screw size is normally taken from the diameter of the thread

Swageless Terminals

Swageless terminals allow the user to connect the wire without the use of special tools

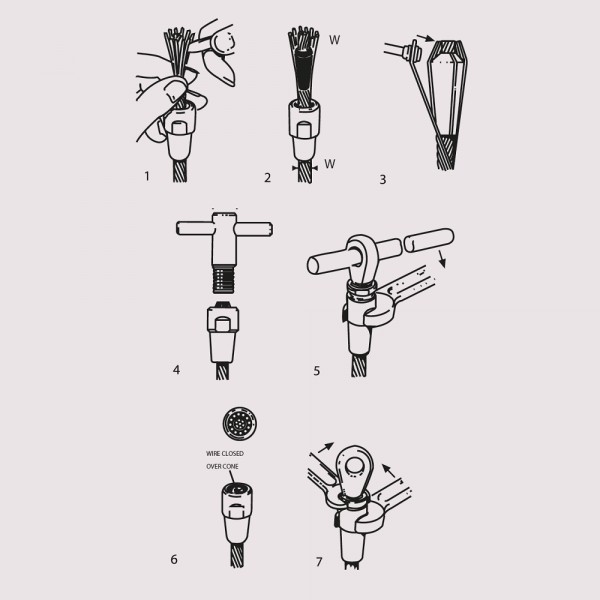

Method

1. Simply slip the body of terminal over the full diameter of the cable.
2. Unlay the outer wires and fit the cone over the centre core.
3. Re-lay the outer wires
4-5. Ease the ends of the wires into the head of the fitting
6-7.  Draw the body up to the head and screw together apply a light quantity of anti-seize lubricant on the male thread.

Dimensions

Please note - Dimensions are for guide only and may vary with different batch supply

Part No

Size

Use Wire Ø

Thread Ø

Length Min

Length Max

Break Load

14062

6mm

3mm

M6

150mm

210mm

1000kg

14063

8mm

4mm

M8

180mm

250mm

1200kg

14064

10mm

5mm

M10

216mm

296mm

2200kg

10465

12mm

6mm

M12

240mm

330mm

4000kg
